Hyundai Santa Fe: Immobilizer System / Antenna Coil. Repair procedures

Hyundai Santa Fe (TM) 2019-2025 Service Manual / Body Electrical System / Immobilizer System / Antenna Coil. Repair procedures

Removal

1.	Disconnect the negative (-) battery terminal.

2.	Remove the crash pad lower panel. (Refer to Body - "Crash Pad Lower Panel")

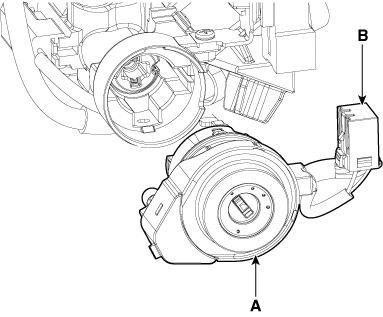

3.	Disconnect the 6P connector (B) of the coil antenna and then remove the coil antenna (A) after loosening the screw.

Installation

1.	Install the coil antenna and connect the 6P connector.

2.	Install the crash pad lower panel.

3.	Connect the negative (-) battery terminal.
