Hyundai Santa Fe: Brake System / Brake Pedal. Components and components location

Hyundai Santa Fe (TM) 2019-2024 Service Manual / Brake System / Brake System / Brake Pedal. Components and components location

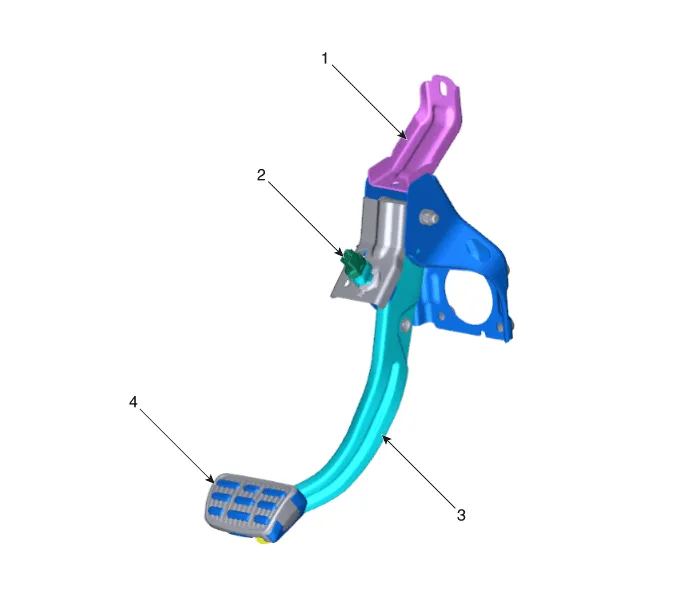

Components

1. Brake member assembly
2. Stop lamp switch

3. Brake pedal arm assembly
4. Brake pedal pad

Brake oil. Repair procedures

Replacement • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift...

Brake Pedal. Repair procedures

Removal 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the crash pad lower panel...
