Hyundai Santa Fe: AC Inverter System / Components and components location

Hyundai Santa Fe (TM) 2019-2025 Service Manual / Body Electrical System / AC Inverter System / Components and components location

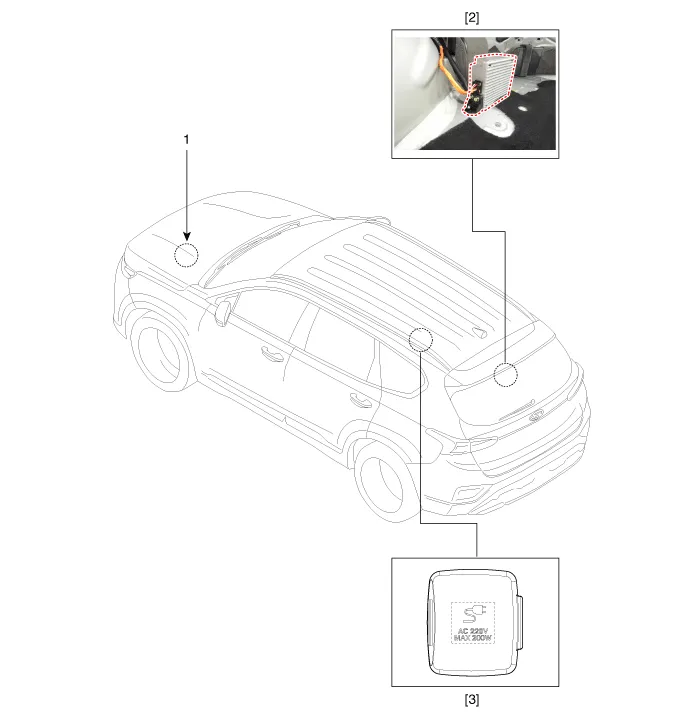

Component Location

1. Battery
2. AC inverter Unit
3. AC inverter outlet

    Description and operation

    Description An inverter is a device that transforms the DC voltage from the battery into an AC voltage (220 V). The inverter can power various electrical devices that consume 200 W or less, including mobile phone or notebook rechargers, audio systems, and TVs...

    Specifications

    Specification Item Specification Rated Voltage DC 12.5V Operating voltage DC 12...
