Hyundai Santa Fe: Airbag Module / Driver Airbag (DAB) Module and Clock Spring. Components and components location

Hyundai Santa Fe (TM) 2019-2025 Service Manual / Restraint / Airbag Module / Driver Airbag (DAB) Module and Clock Spring. Components and components location

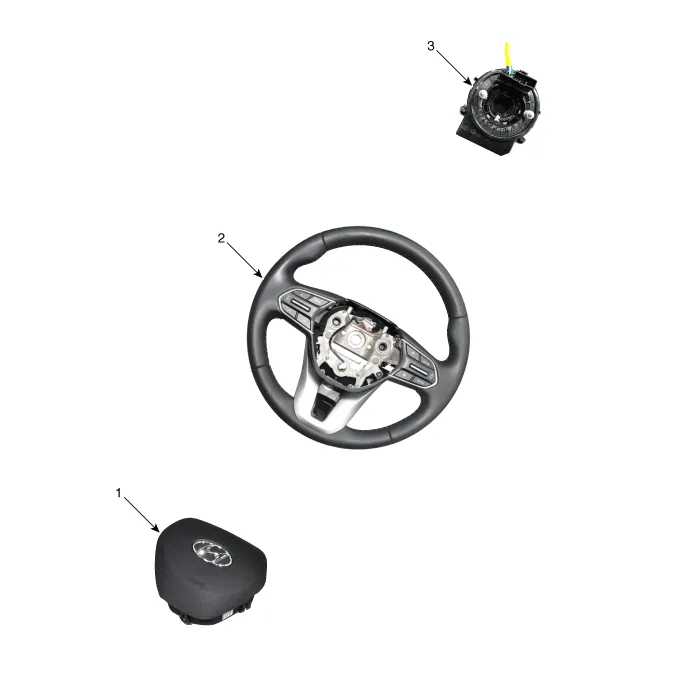

Components

1. Driver Airbag (DAB)
2. Steering Wheel
3. Clock Spring

    Driver Airbag (DAB) Module and Clock Spring. Description and operation

    Description The Driver Airbag (DAB) is installed in the steering wheel and electrically connected to SRSCM via the clock spring. It protects the driver by deploying the airbag when frontal crash occurs...

    Driver Airbag (DAB) Module and Clock Spring. Repair procedures

    Removal 1. Disconnect the battery negative cable and wait for at least three minutes before beginning work. 2...
