Hyundai Santa Fe (TM) 2019-2025 Service Manual / Body (Interior and Exterior) / Floor Console / Floor Console Assembly. Components and components location

Component Location (1)

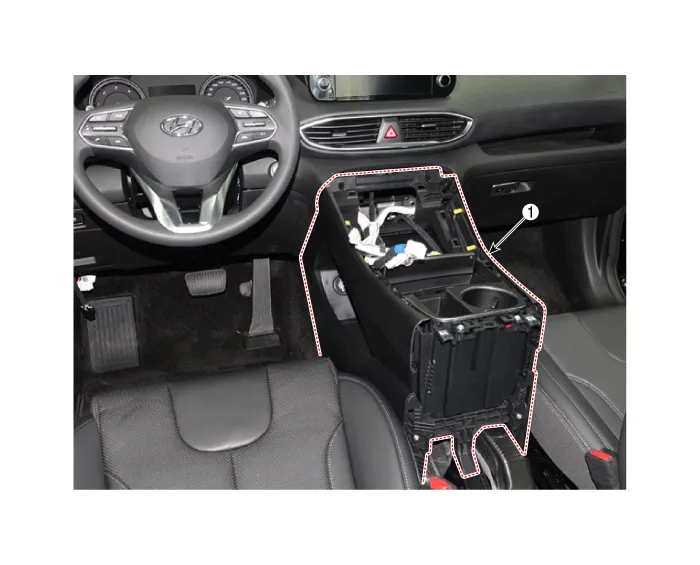

1. Front Console Assembly


Component Location (2)

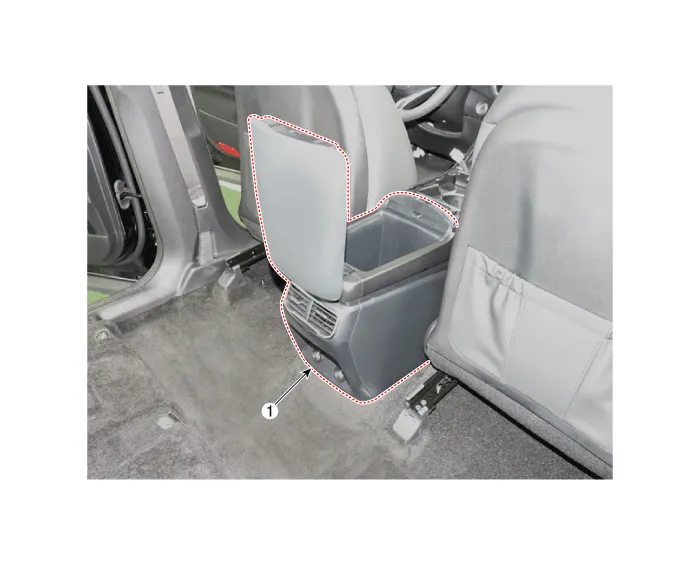

1. Rear Floor Console Assembly


    Components and components location

    Components 1. Floor console side cover 2. Floor console upper cover 3. Console armrest lock assembly 4. Storage box mat 5...

    Floor Console Assembly. Repair procedures

    Replacement [Rear Floor Console Assembly]    • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components...
