Hyundai Santa Fe: Side View mirrors / Folding the side view mirror
Manual type
.png)
To fold the side view mirror, grasp the housing of the mirror and then fold it toward the rear of the vehicle.
Electric type
.png)

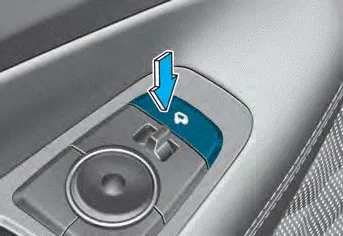

The side view mirror can be folded or unfolded by pressing the switch.
- If 'Convenience -> Welcome mirror/light -> On door unlock' is selected in
the User Settings mode on the LCD display, the outside mirror will fold or unfold
automatically as follows:
- The mirror will fold or unfold when the door is locked or unlocked by the smart key.
- The mirror will fold or unfold when the door is locked or unlocked by the button on the outside door handle. - If 'Convenience -> Welcome mirror/light -> On door unlock' and 'Convenience -> Welcome mirror/light -> On driver approach' is selected in the User Settings mode on the LCD display, the outside mirror will unfold automatically when you approach the vehicle (all doors closed and locked) with a smart key in possession.
NOTICE
The electric type side view mirror operates even though the ignition switch is in the OFF position. However, to prevent unnecessary battery discharge, do not adjust the mirrors longer than necessary while the engine is not running.
NOTICE
Do not fold the electric type side view mirror by hand. It could cause motor failure.
Adjusting the side view mirrors
1. Move the lever (1) either to the L (left side) or R (right side) to select
the side view mirror you would like to adjust.
2. Use the mirror adjustment control (2) to position the selected mirror up,
down, left or right...
Reverse parking aid
When the gear is shifted to the R (Reverse) position, the side view mirror(s)
will rotate downwards to aid with driving in reverse.
The position of the side view mirror switch (1) determines whether or not the
mirrors will move:
Left/Right : When either the L (Left) or R (Right) switch is selected, both side
view mirrors will move...
