Hyundai Santa Fe: Convenience features / Integrated memory system
.png)

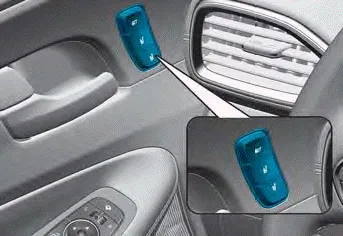

Integrated Memory System for the driver’s seat is provided to store and recall
the following memory settings with a simple button operation.
- Driver’s seat position
- Side View mirror position
WARNING
Never attempt to operate the integrated memory system while the vehicle is
moving.
This could result in loss of control, and an accident causing death, serious
injury, or property damage.
Information
- If the battery is disconnected, the memory settings will be erased.
- If integrated memory system does not operate normally, have the
system inspected by an authorized HYUNDAI dealer.
This system helps to protect your vehicle and valuables. The horn will sound
and the hazard warning lights will blink continuously if any of the following occur:
- A door is opened without using the smart key...
1. Shift to P (Park) while the Engine Start/Stop button is in the ON position.
2. Adjust the driver’s seat position, side view mirror position, steering wheel
position, instrument panel illumination intensity and head-up display height/brightness
to the desired position...
Other information:
Replacement
•
Put on gloves to prevent hand injuries.
•
When removing with a flat-tip screwdriver or remover, wrap protective
tape around the tools to prevent damage to components...
Inspection
Tailgate normal operation transmit / receive process
•
FOB key Switch : FOB key Switch → BMC / SMK → CAN communication
→ PTG Module
•
Driver Switch : Driver Switch → Wiring → PTG Module
•
Outer Switch : Outer Switch → Wiring → SJB → CAN communication
→ PTG Module
① Press the power tailgate open switch
② Transmit / receive power tailgate open signal via CAN communication and wiring
③ Power tailgate open
•
The operation of the power tailgate is activated by mutual communication
with the vehicle's module and switch...
Categories
Electric Power Steering (EPS) warning light
.png)
This warning light illuminates:
When you set the ignition switch or the Engine Start/Stop button to
the ON position.
- The electric power steering warning light illuminates for about 3 seconds
and then goes off.
Whenever there is a malfunction with the electric power steering.
If this occurs, have the vehicle inspected by an authorized HYUNDAI dealer.
