Hyundai Santa Fe: Power Tailgate Module / Power Tailgate Latch. Repair procedures

Hyundai Santa Fe (TM) 2019-2025 Service Manual / Body Electrical System / Power Tailgate Module / Power Tailgate Latch. Repair procedures

Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the tailgate trim.
(Refer to Body - "Tailgate Trim")
3.

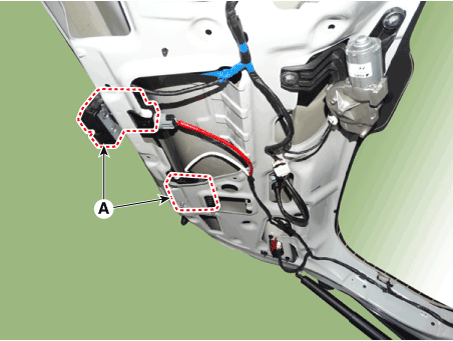

Remove the tail gate latch and PCU (A) after loosening the mounting bolts.

Installation
1.
Install the power tailgate latch & PCU assembly.
Tightening torque :
Latch : 7.6 - 11.4 N.m (0.7 - 1.2 kgf.m, 5.6 - 8.4 lb-ft)
PCU : 2.7 - 4.0 N.m (0.3 - 0.4 kgf.m, 3.0 - 5.8 lb-ft)
2.
Install the tailgate trim.
3.
Connect the negative (-) battery terminal.
Inspection
Inspection of the Power Tailgate Latch
Refer to Power Tailgate System - "Troubleshooting"

    Power Tailgate Unit. Repair procedures

    Removal    1) After replacing with a new power tailgate module, check for DTC code at all times...

    Anti-Pinch Strip. Repair procedures

    Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the tailgate trim...
