Hyundai Santa Fe: Power Windows / Power Window Motor. Components and components location

Hyundai Santa Fe (TM) 2019-2025 Service Manual / Body Electrical System / Power Windows / Power Window Motor. Components and components location

Components

    Components and components location

    Component Location 1. DAU (Door Area Unit) 2. Assist window switch 3. Front window motor 4. Rear window motor 5...

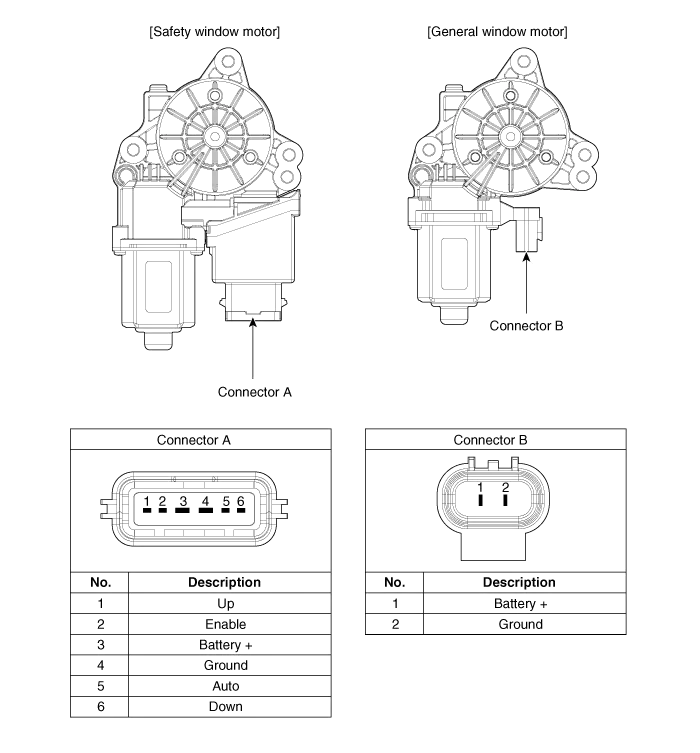

    Power Window Motor. Schematic diagrams

    ..
