Hyundai Santa Fe: Seat Electrical / Air Ventilation Seat. Schematic diagrams
Hyundai Santa Fe (TM) 2019-2024 Service Manual / Body Electrical System / Seat Electrical / Air Ventilation Seat. Schematic diagrams

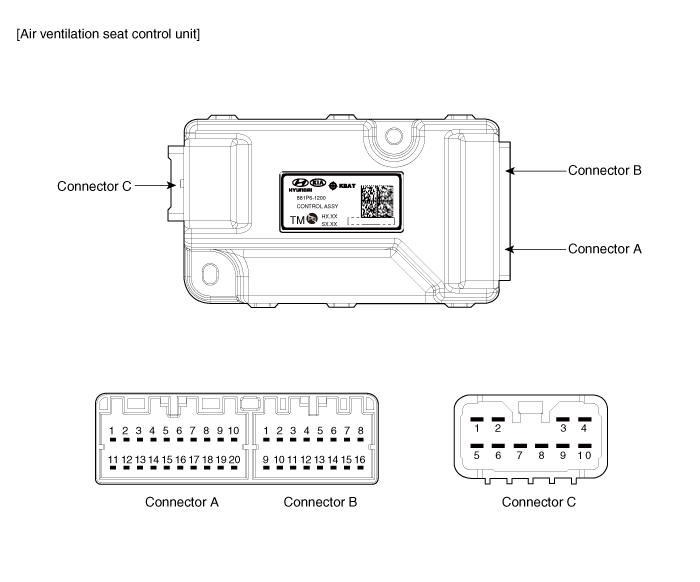

| Circuit Diagram |
|
No. |
Connector A |
Connector B |
Connector C |
|
1 |
Vent heater ECU _ IGN1 |
Driver vent switch LED (Low) |
Vent / heater power |
|
2 |
Driver blower power |
Driver vent switch LED (Mid) |
Driver heater power |
|
3 |
Driver blower speed |
Driver vent switch LED (High) |
Driver heater ground |
|
4 |
Driver RPM input |
Driver NTC (+) |
Driver / Assist, Vent / Heater ground |
|
5 |
Driver heater switch |
- |
vent / heater power |
|
6 |
Driver vent switch |
Illumination (-) |
- |
|
7 |
Illumination (+) |
Driver NTC (-) |
Assist heater power |
|
8 |
Driver heater LED (Low) |
Driver blower ground |
- |
|
9 |
Driver heater LED (Mid) |
Driver vent led (Low) |
Assist heater ground |
|
10 |
Driver heater LED (High) |
Driver vent led (Mid) |
Driver / Assist, Vent / Heater ground |
|
11 |
Vent seat unit IGN 2 |
Driver vent led (High) |
|
|
12 |
Assist blower power |
Assist NTC (+) |
|
|
13 |
Assist blower speed |
FATC PWM |
|
|
14 |
Assist blower RPM input |
- |
|
|
15 |
Assist heater switch |
Assist NTC (-) |
|
|
16 |
Assist vent switch |
Assist blower ground |
|
|
17 |
Detent |
|
|
|
18 |
Assist heater LED (Low) |
||
|
19 |
Assist heater LED (Mid) |
||
|
20 |
Assist heater LED (High) |
Air Ventilation Seat. Repair procedures
Removal
Cushion Blower
1.
Remove the front seat assembly.
(Refer to Body - "Front Seat Assembly")
2...
