Hyundai Santa Fe: Body Electrical System / Seat Electrical
Hyundai Santa Fe (TM) 2019-2025 Service Manual / Body Electrical System / Seat Electrical
- Components and components location
- Inspection
- Power Seat Motor. Repair procedures

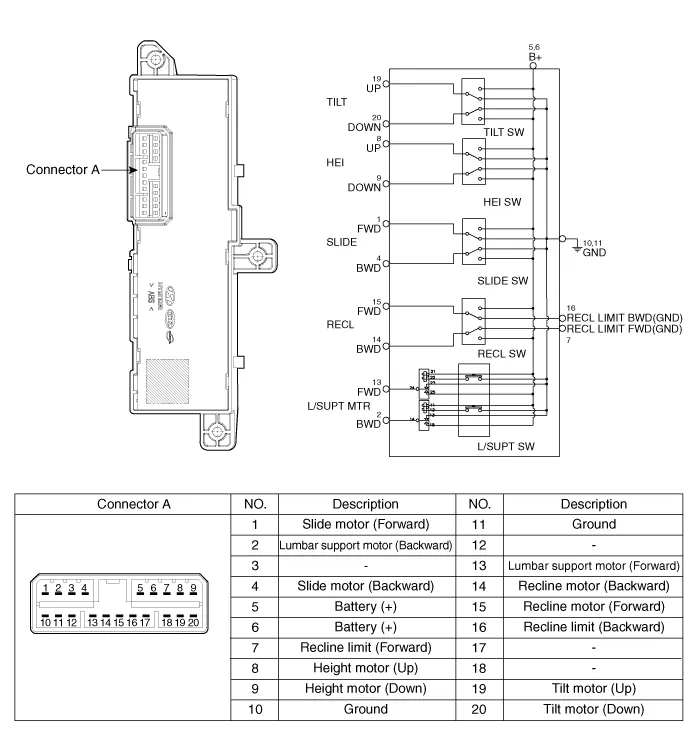

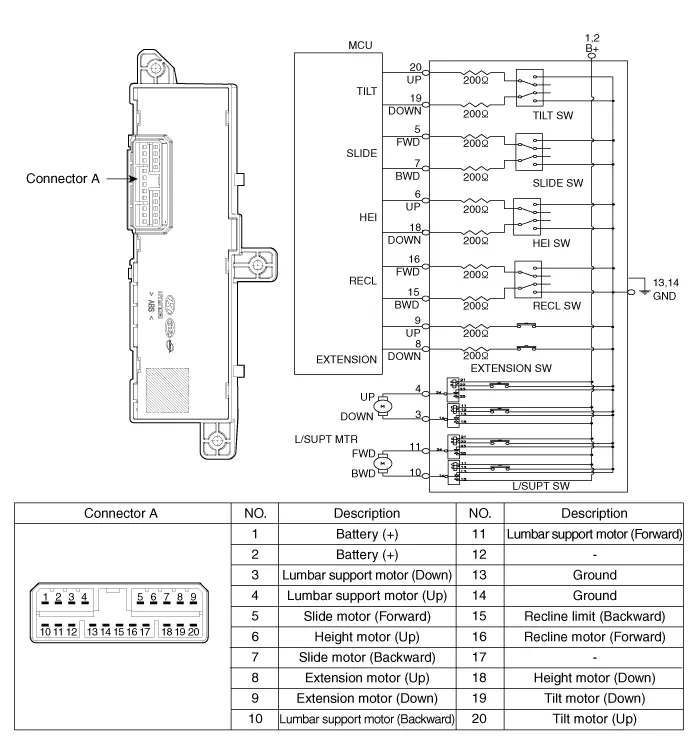

- Power Seat Control Switch. Schematic diagrams
- Power Seat Control Switch. Repair procedures
- Lumber Support System. Repair procedures

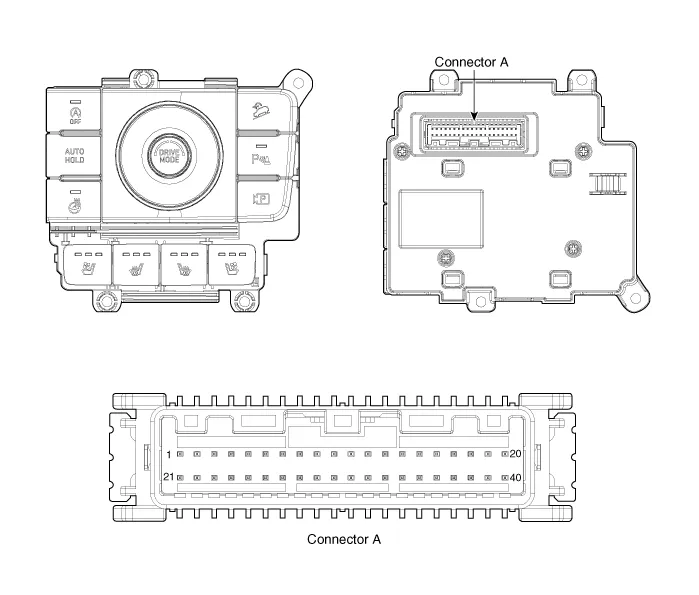

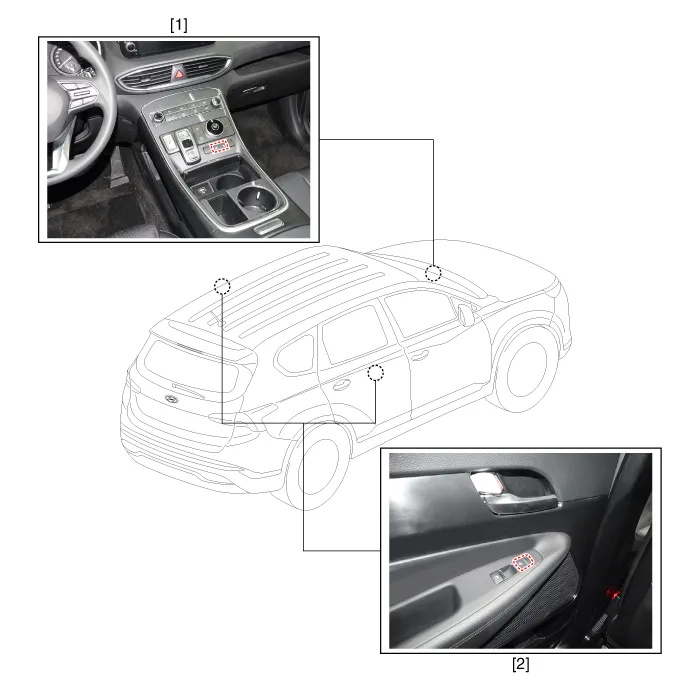

- Seat Heater Switch. Components and components location
- Seat Heater Switch. Schematic diagrams
- Seat Heater Switch. Repair procedures

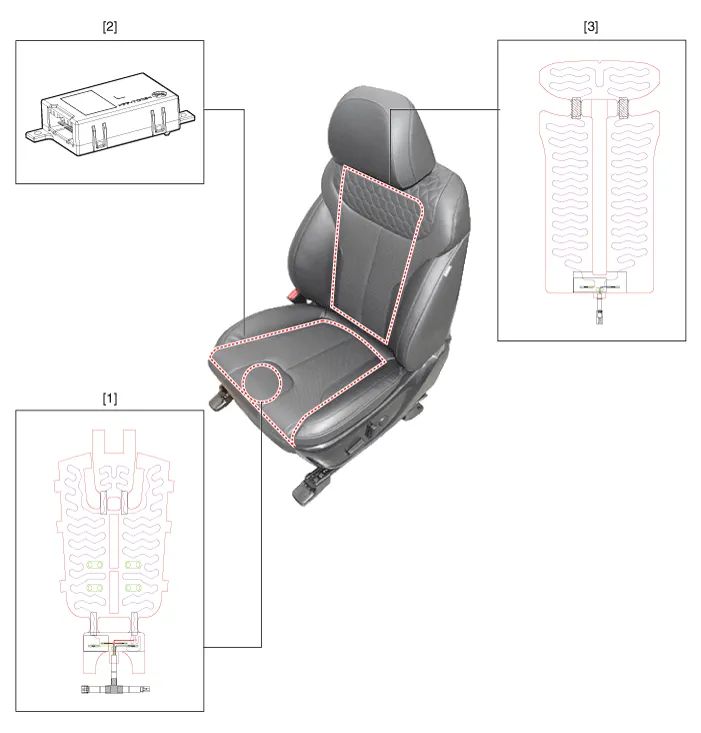

- Seat Heater (Non-Air Ventilation). Components and components location

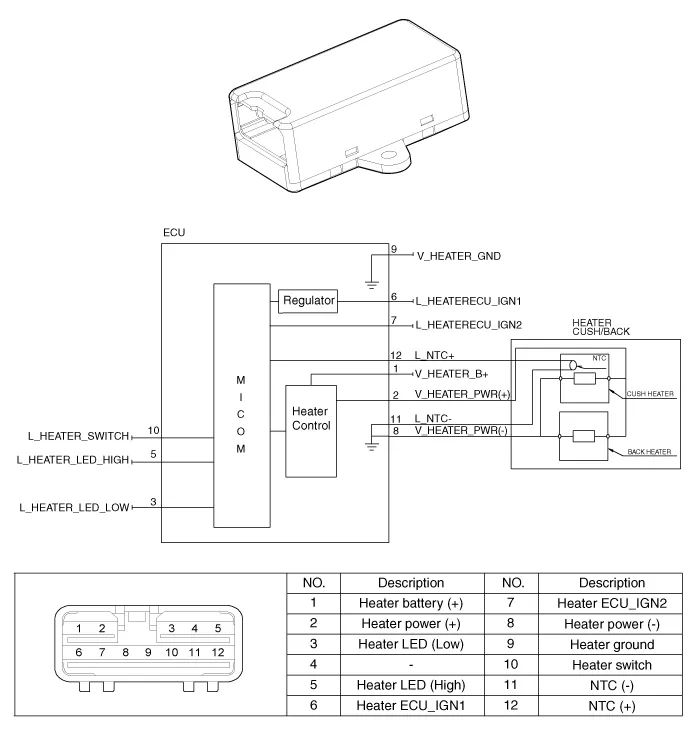

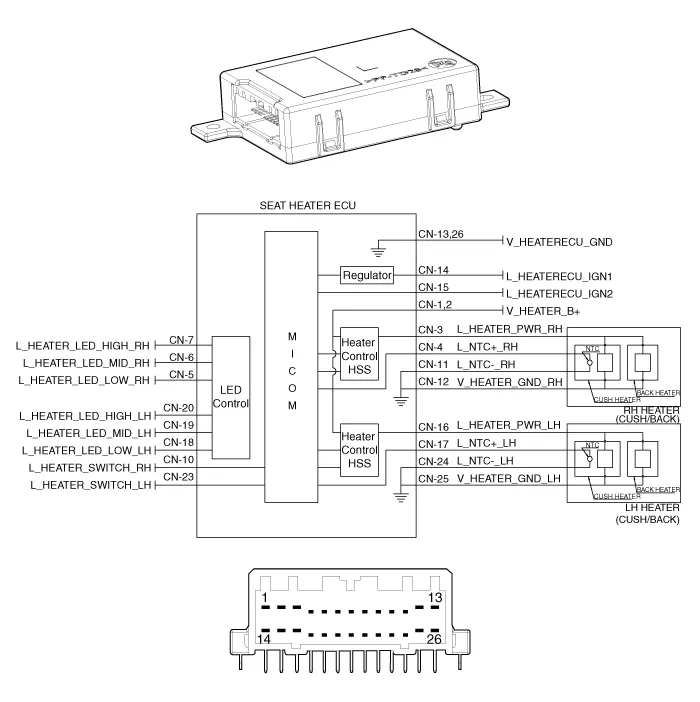

- Seat Heater (Non-Air Ventilation). Schematic diagrams
- Seat Heater (Non-Air Ventilation). Repair procedures

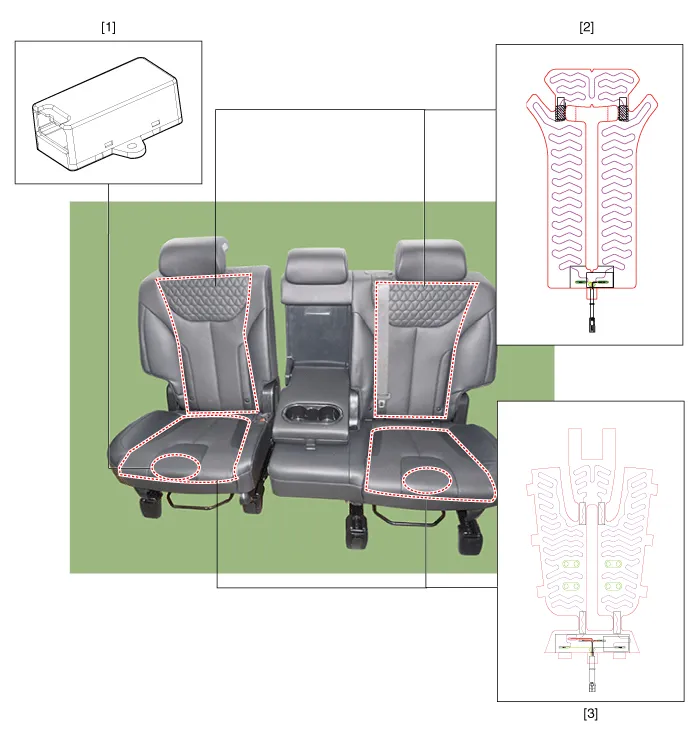

- Seat Heater (Air Ventilation). Components and components location
- Seat Heater (Air Ventilation). Schematic diagrams
- Seat Heater (Air Ventilation). Repair procedures
- Air Ventilation Seat. Components and components location

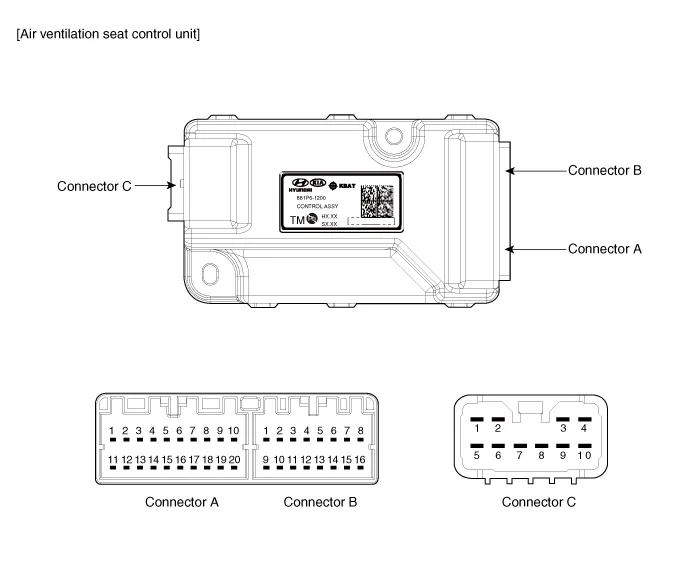

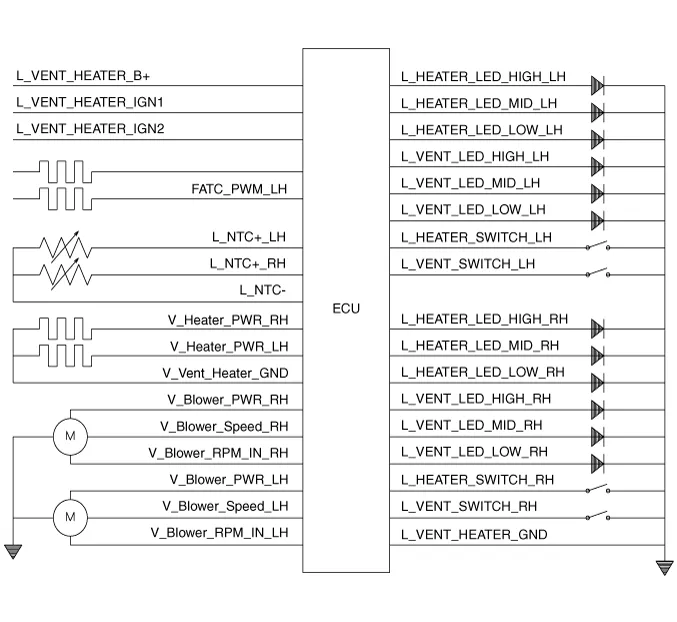

- Air Ventilation Seat. Schematic diagrams
- Air Ventilation Seat. Repair procedures

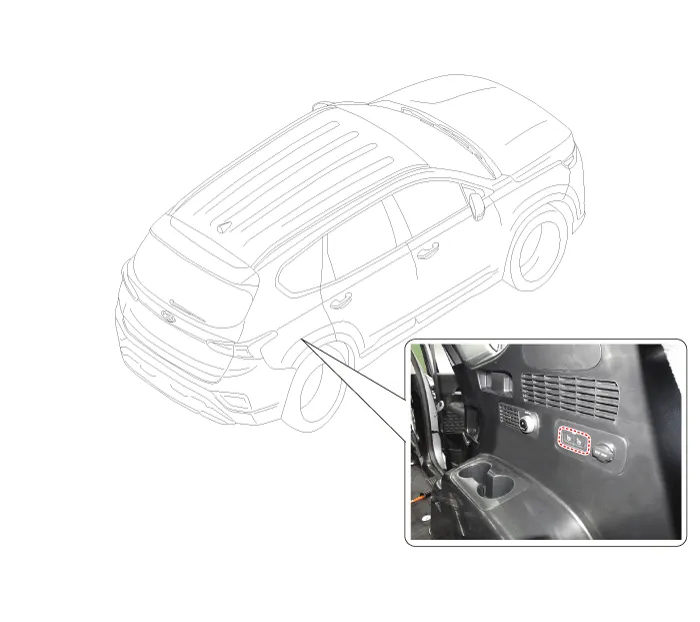

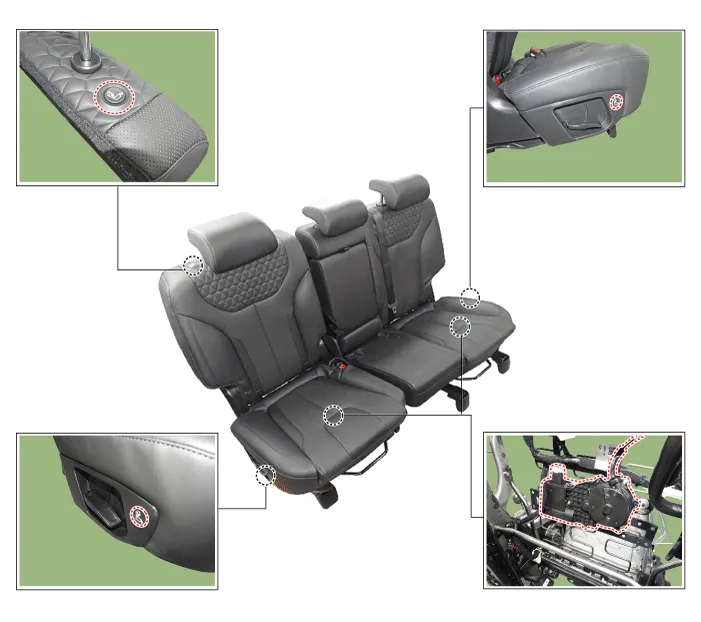

- Walk-in Switch. Components and components location

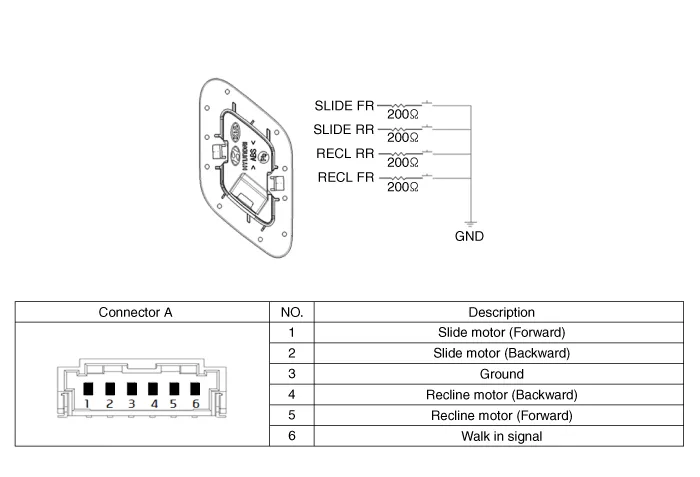

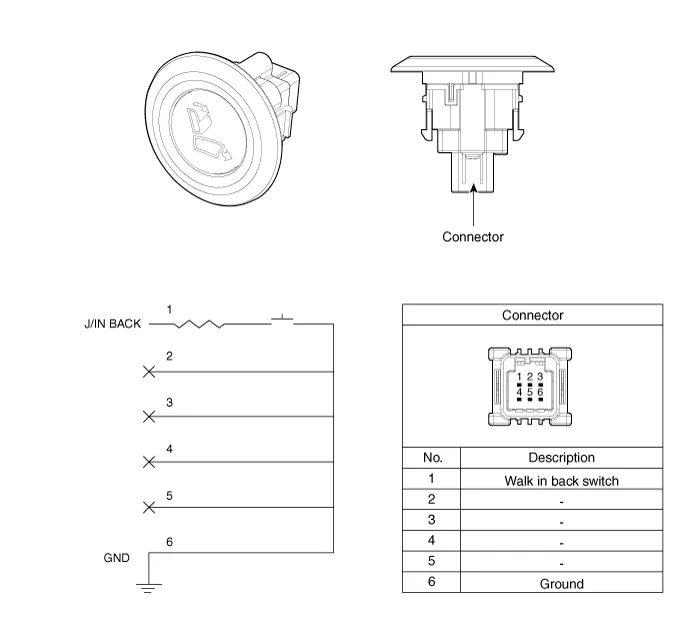

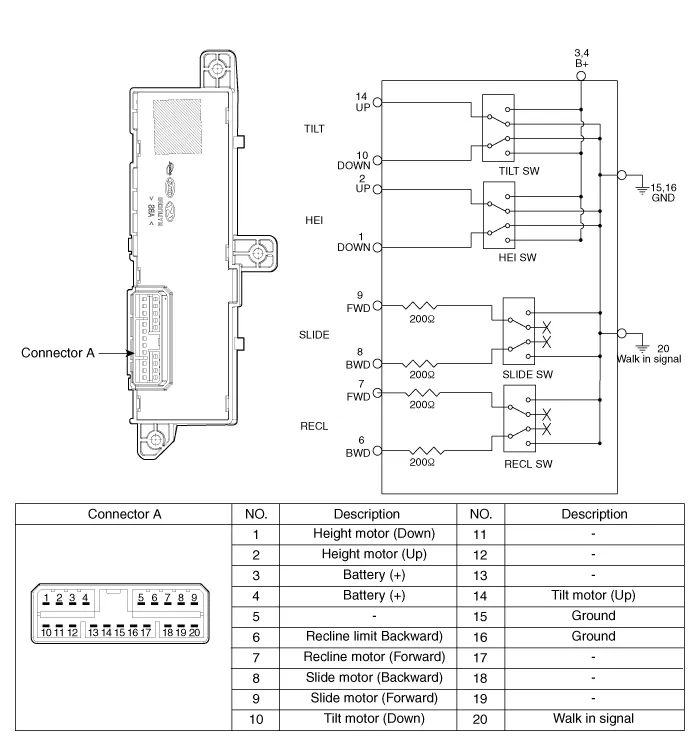

- Walk-in Switch. Schematic diagrams
- Walk-in Switch. Repair procedures
IMS Control Switch. Repair procedures
Inspection
1.
Disconnect the IMS control switch connector.
2.

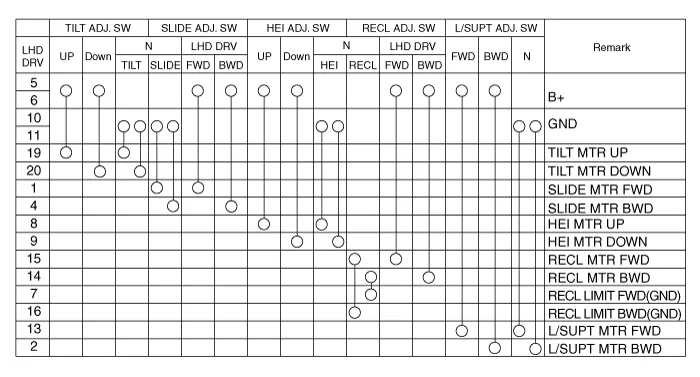

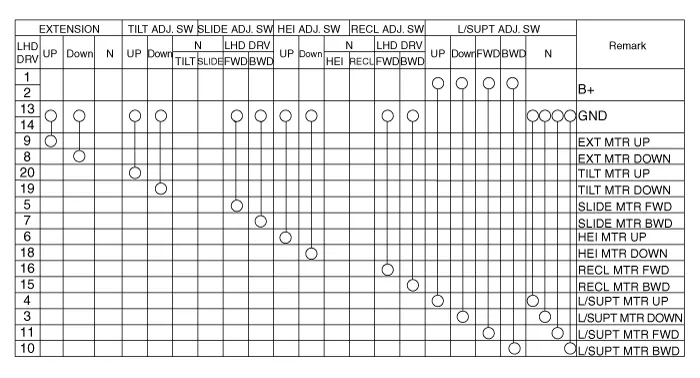

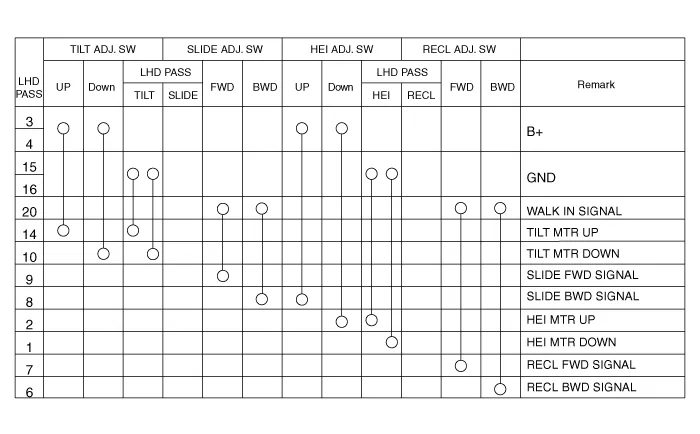

With the power IMS control switch in each position, make sure that continuity
exists between the terminals below...
Components and components location

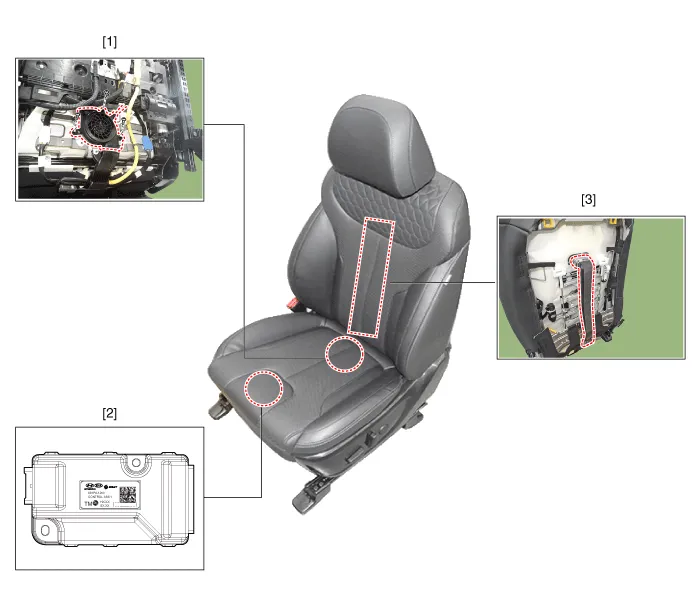

Component Location
1. Lumber support
motor (Vertical)
2. Lumbar support motor (Horizontal)
3. Reclining motor
4...
