Hyundai Santa Fe: Charging System / Battery. Troubleshooting

Hyundai Santa Fe (TM) 2019-2024 Service Manual / Engine Electrical System / Charging System / Battery. Troubleshooting

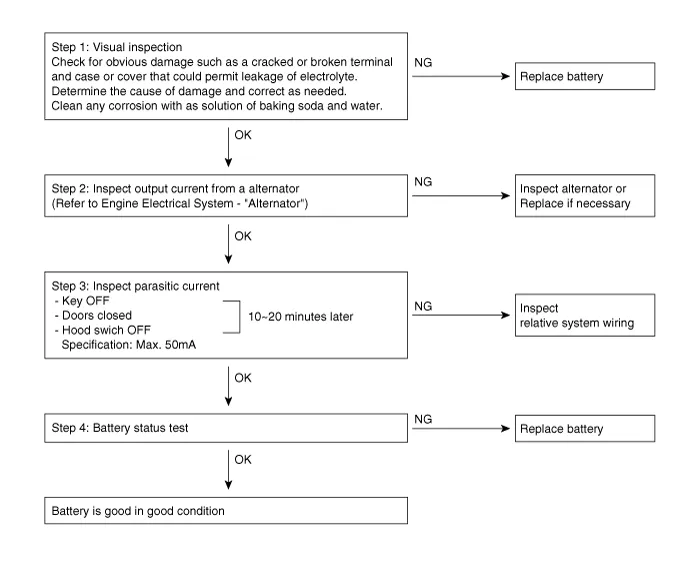

Troubleshooting
