Hyundai Santa Fe (TM) 2019-2024 Service Manual / Body (Interior and Exterior) / Panorama Sunroof / Components and components location

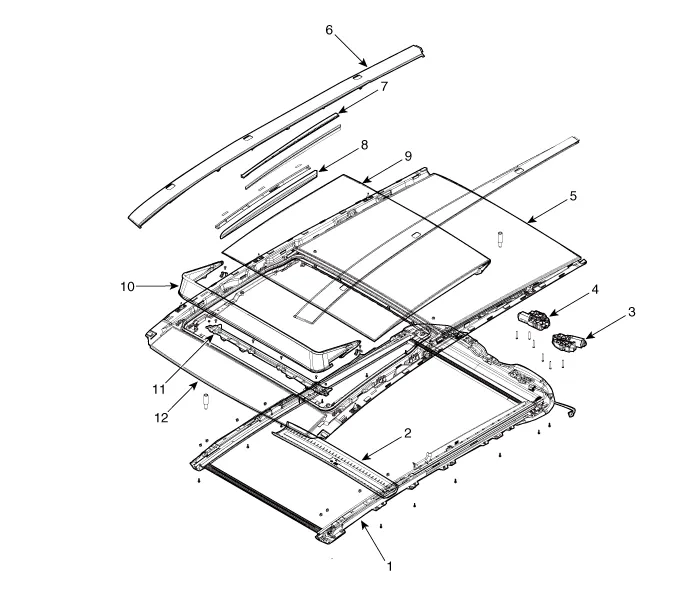

Component

1. Mechanism rail assembly
2. Center cover assembly
3. Roller blind motor
4. Glass motor
5. Panorama sunroof panel
6. Side molding
 7. Decoration inner cover
8. Decoration outer cover
9. Movable glass assembly
10. Wind deflecter assembly
11. Front cover assembly
12. Front glass

    Panorama Sunroof

    ..

    Repair procedures

    Alignment Glass step alignment 1. Perform considerable step alignment after replacing movable glass (A). ① ② ③ 2...
