Hyundai Santa Fe (TM) 2019-2025 Service Manual / Body (Interior and Exterior) / Front Door / Components and components location

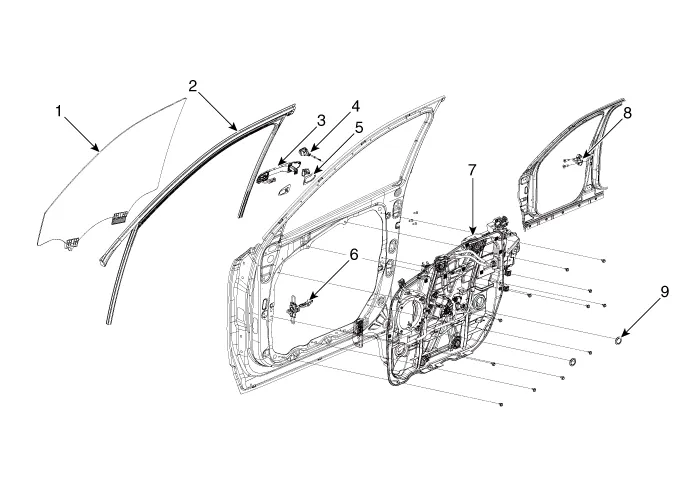

Components

1. Front door window glass
2. Front door window glass run assembly
3. Front door outside handle
4. Front door lock assembly
5. Front door outside handle pad
6. Front door checker assembly
7. Front door module assembly
8. Front door striker
9. Front door module plug hole

    Front Door

    ..

    Repair procedures

    Adjustment Glass Adjustment    • Check the glass run channel for damage or deterioration, and replace it if necessary...
