Hyundai Santa Fe: Exterior features / Hood

Hyundai Santa Fe (TM) 2019-2024 Owner's Manual / Convenience features / Exterior features / Hood

Opening the hood

1. Park the vehicle and set the parking brake.

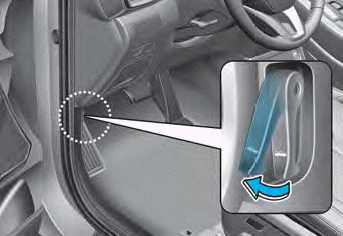

2. Pull the release lever to unlatch the hood. The hood should pop open slightly.

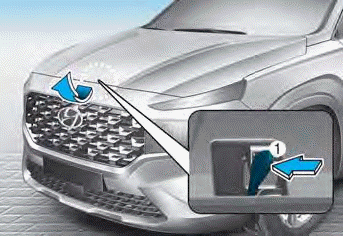

3. Go to the front of the vehicle, raise the hood slightly, push up the secondary latch (1) inside of the hood center and lift the hood.

After the hood has been lifted halfway, it will raise completely by itself.

Closing the hood

1. Before closing the hood, check in and around the engine compartment to ensure the following:

- Any tools or other loose objects are removed from the engine room area or hood opening area
- All glove, rags, or other combustible material is removed from the engine compartment
- All filler caps are tightly and correctly installed

2. Lower the hood halfway (lifted approximately 12 in. (30 cm) from the closed position) and push down to securely lock in place. Then double check to be sure the hood is secure. If the hood can be raised slightly, it is not securely locked. Open it again and close it with more force.

WARNING

  • Before closing the hood, ensure all obstructions are removed from around the hood opening.
  • Always double check to be sure that the hood is firmly latched before driving away. Check there is no hood open warning light or message displayed on the instrument cluster. Driving with the hood opened may cause a total loss of visibility, which might result in an accident.
  • Do not move the vehicle with the hood in the raised position, as vision is obstructed, which might result in an accident, and the hood could fall or be damaged.
