Hyundai Santa Fe: Brake System / Rear Disc Brake. Components and components location

Hyundai Santa Fe (TM) 2019-2025 Service Manual / Brake System / Brake System / Rear Disc Brake. Components and components location

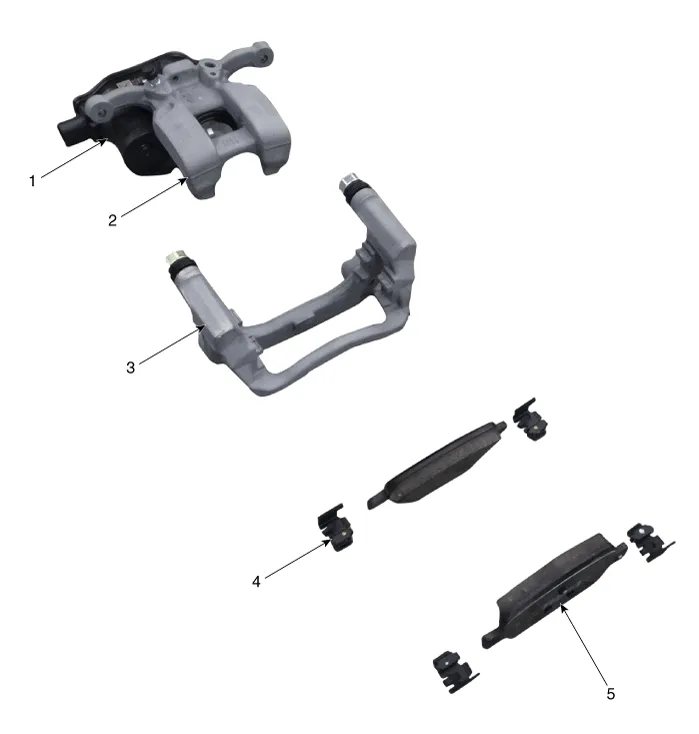

Components

1. EPB actuator
2. Caliper body
3. Caliper carrier
4. Pad retainer
5. Brake pad

    Front Disc Brake. Repair procedures

    Removal    • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift...

    Rear Disc Brake. Repair procedures

    Removal    • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift...
