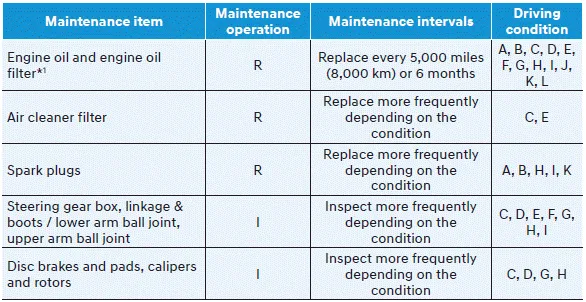

Follow Normal Maintenance Schedule if the vehicle is usually operated where none of the following conditions apply. If any of the following conditions apply, you must follow the Maintenance Under Severe Usage Conditions.

  • Repeated driving short distance of less than 5 miles (8 km) in normal temperature or less than 10 miles (16 km) in freezing temperature
  • Extensive engine idling or low speed driving for long distances
  • Driving on rough, dusty, muddy, unpaved, graveled or salt-spread roads
  • Driving in areas using salt or other corrosive materials or in very cold weather
  • Driving in heavy dust conditions
  • Driving in heavy traffic area
  • Driving on uphill, downhill, or mountain road repeatedly
  • Towing a trailer or using a camper, or roof rack
  • Driving as a patrol car, taxi, other commercial use of vehicle towing
  • Driving over 106 miles (170 km/h)
  • Frequently driving in stop-and-go condition
  • Engine oil usage which is not recommended (mineral, semi-synthetic, lower grade spec, etc.)

If your vehicle is operated under the above conditions, you should inspect, replace or refill more frequently than the following Normal Maintenance Schedule. After the periods or distance shown in the chart, continue to follow the prescribed maintenance intervals.

Owner maintenance schedule

When you stop for fuel: Check the engine oil level. Check the coolant level in the engine coolant reservoir or the water-cooled intercooler coolant reservoir...

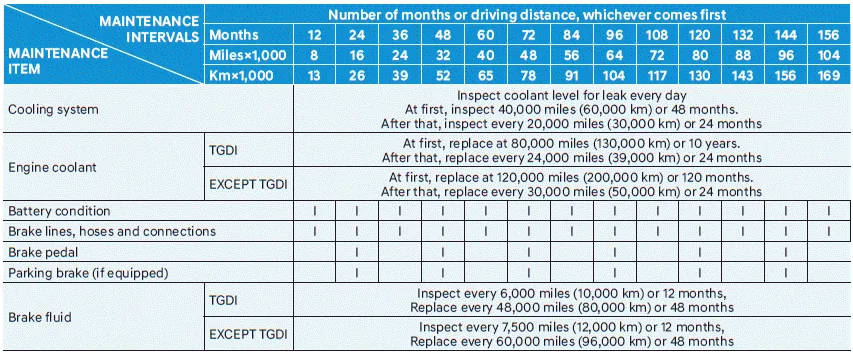

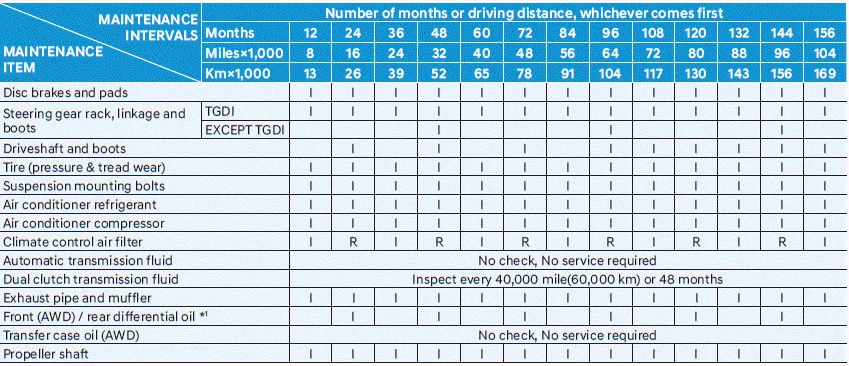

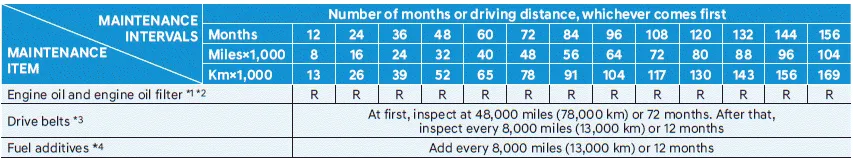

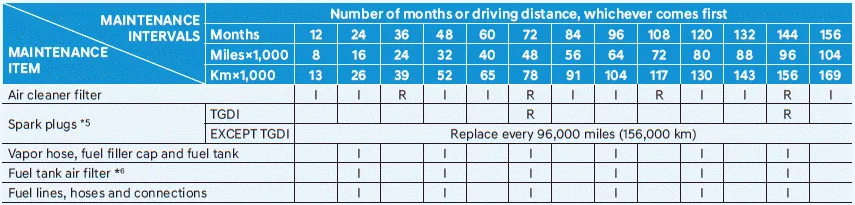

Normal maintenance schedule

..
