Hyundai Santa Fe: Convenience features / Storage compartment

Hyundai Santa Fe (TM) 2019-2024 Owner's Manual / Convenience features / Storage compartment

WARNING

Never store cigarette lighters, propane cylinders, or other flammable/explosive materials in the vehicle. These items may catch fire and/or explode if the vehicle is exposed to hot temperatures for extended periods.

WARNING

ALWAYS keep the storage compartment covers closed securely while driving. Items inside your vehicle are moving as fast as the vehicle. If you have to stop or turn quickly, or if there is a crash, the items may fly out of the compartment and may cause an injury if they strike the driver or a passenger.

NOTICE

To avoid possible theft, do not leave valuables in the storage compartments.

Sunroof inside air recirculation. Auto. Controls That Use Climate Control Settings (for driver’s seat)

Sunroof inside air recirculation When the is sunroof opened, fresh mode will be automatically selected. At this time, if you press the air intake control button, recirculation mode will be selected but will change back to fresh mode after 3 minutes...

Center console storage. Glove box

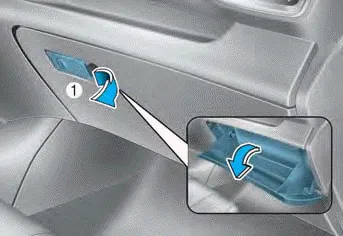

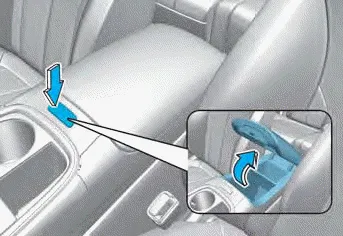

Center console storage To open: Press the button. Glove box To open: Pull the lever (1). WARNING ALWAYS close the glove box door after use. An open glove box door can cause serious injury to the passenger in an accident, even if the passenger is wearing a seat belt...
