Hyundai Santa Fe: Panoramic sunroof / Tilt open/close

Hyundai Santa Fe (TM) 2019-2025 Owner's Manual / Convenience features / Panoramic sunroof / Tilt open/close

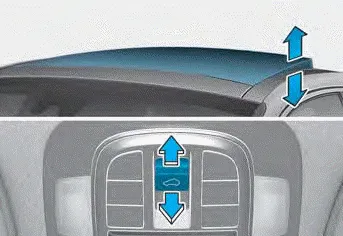

  • Push the sunroof switch upward, the sunroof glass tilts open. However, if the power sunshade is closed, the sunshade will open first.
  • Push the sunroof switch forward, the sunroof glass automatically closes.

To stop the sunroof movement at any point, push the sunroof switch in any direction.

    Power sunshade

    Use the power sunshade to block direct sunlight coming through the sunroof glass. - Push the sunroof switch rearward to the first detent position, the power sunshade automatically slides open...

    Slide open/close

    Push the sunroof switch rearward, the sunroof glass slides open. However, if the power sunshade is closed, the power sunshade will open first. Push the sunroof switch forward, the sunroof glass closes...
