Hyundai Santa Fe (TM): Interior features / USB charger

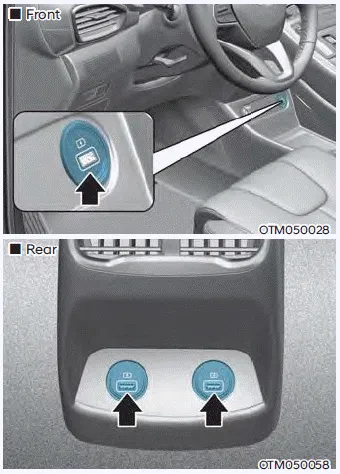

The USB charger is designed to recharge batteries of small size electrical devices using a USB cable.

The electrical devices can be recharged when the Engine Start/Stop button is in the ACC or ON (or START) position.

The battery charging state may be monitored on the electrical device.

Disconnect the USB cable from the USB port after use.

  • A smart phone or a tablet PC may get warmer during the re-charging process. It does not indicate any malfunction with the charging system.
  • A smart phone or a tablet PC, which adopts a different re-charging method, may not be properly recharged. In this case, use an exclusive charger of your device.
  • The charging terminal is only to recharge a device. Do not use the charging terminal either to turn ON an audio or to play media In the infotainment system.

    The power outlet is designed to provide power for mobile telephones or other devices designed to operate with vehicle electrical systems. The devices should draw less than 180 watts with the engine running.

    The AC inverter supplies 115V/150W electric power to operate electric accessories or equipments. Information Rated voltage : AC 115 volts Maximum electric power : 150 watts In order to avoid an electrical system failure, electric shock, etc.
