Hyundai Santa Fe: Exhaust Emission Control System / Catalytic Converter. Description and operation

The catalytic converter of the gasoline engine is a three way catalyst. It oxidizes carbon monoxide and hydrocarbons (HC), and separates oxygen from the oxides of nitrogen (NOx).

Description and operation

Description Exhaust emissions (CO, HC, NOx) are controlled by a combination of engine modifications and the addition of special control components...

Catalytic Converter. Repair procedures

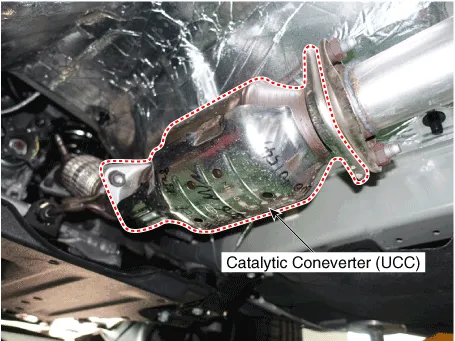

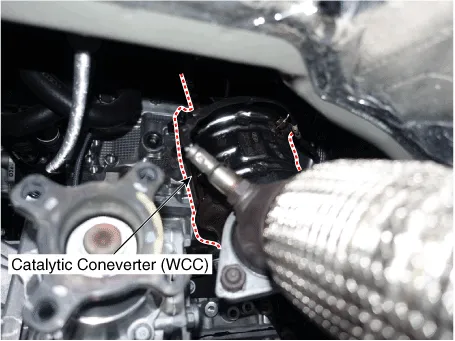

Removal [Catalytic Converter (WCC)] 1. Remove the exhaust manifold. (Refer to Engine Mechanical System - "Exhaust Manifold") [Catalytic Converter (UCC)] 1...
