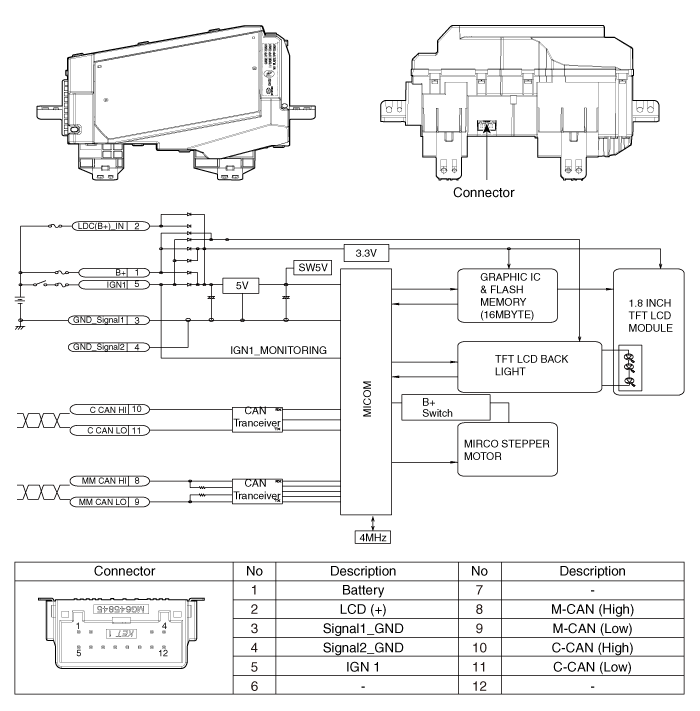

Hyundai Santa Fe: Head Up Display System / Head Up Display Unit. Components and components location
Hyundai Santa Fe (TM) 2019-2025 Service Manual / Body Electrical System / Head Up Display System / Head Up Display Unit. Components and components location
| Component |
Head Up Display Unit. Troubleshooting
Troubleshooting
Category
Error symptoms
inspection item
Detailed inspection item
Related parts
Lighting
•
HUD not working
•
Lighting brightness not automatically controlled (no difference
between day and night)
•
Check the lighting control
•
Check the ambient light sensor operation
•
Check the CAN communication
•
Check the lighting control in the cluster USM
→ If working, HUD has no problem...
Other information:
