Hyundai Santa Fe: Driving your vehicle / Vehicle auto-shut off

Hyundai Santa Fe (TM) 2019-2025 Owner's Manual / Driving your vehicle / Vehicle auto-shut off

If your vehicle is parked and the engine is left on for a long period of time, the engine will turn off automatically to help reduce fuel consumption and prevent accidents caused by carbon dioxide poisoning.

Operating Conditions

Vehicle Auto-Shut Off timer operates when all the following conditions are satisfied:

  • Vehicle speed is below 1.8 mph (3 km/h), and the gear is shifted to P (Park)
  • The brake pedal and accelerator pedal are not depressed
  • The driver’s seat belt is unfastened
  • The passenger seat is empty
  • The infotainment system is not being updated

Deactivating Conditions

Vehicle Auto-Shut Off timer turns off when one of the situation occur:

  • Vehicle speed is above 1.8 mph (3 km/h)
  • The gear is shifted to R (Reverse), D (Drive) or N (Neutral)
  • The brake pedal or accelerator pedal is depressed
  • The driver’s seat belt is fastened
  • A passenger is in the passenger’s seat

Remote start

You can start the vehicle using the Remote Start button of the smart key. To start the vehicle remotely: 1. Press the door lock button within 10 m (32 feet) from the vehicle...

System Operation

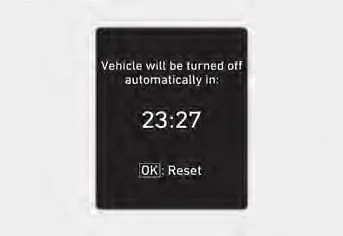

When all the conditions are satisfied, the Vehicle Auto-Shut Off operates and turns the engine off automatically after 60 minutes. A timer appears on the instrument cluster 30 minutes before vehicle shut off...
