Hyundai Santa Fe: Hydraulic System / 26 Brake Control Solenoid Valve (26/B_VFS). Components and components location

Hyundai Santa Fe (TM) 2019-2024 Service Manual / Automatic Transaxle System (SBC) / Hydraulic System / 26 Brake Control Solenoid Valve (26/B_VFS). Components and components location

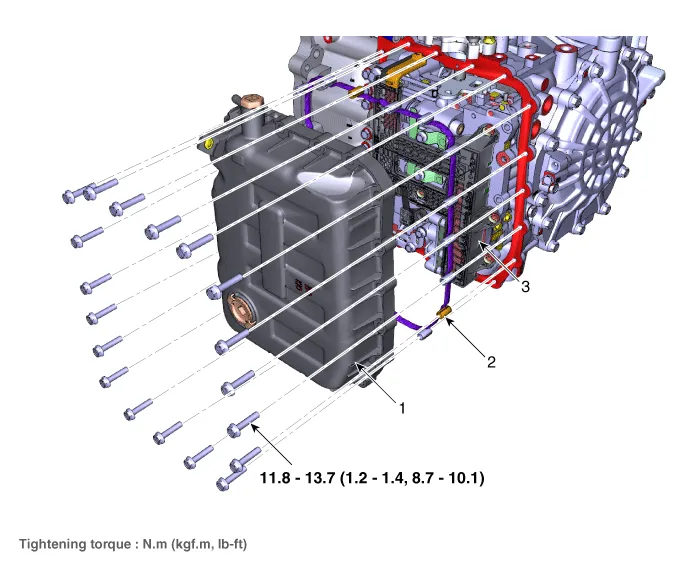

Component Location (1)_Valve Body Cover

1. Valve Body Cover
2. Valve Body Cover Gasket
3. Solenoid Valve Connector

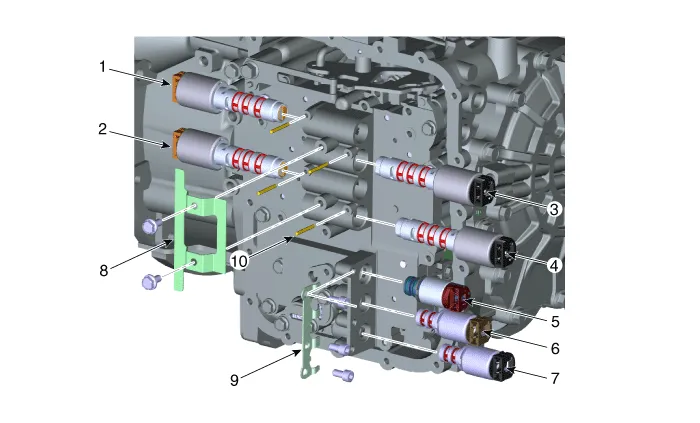

Component Location (2)_Solenoid Valve

1. 26 Brake Control Solenoid Valve
2. 35R Clutch Control Solenoid Valve
3. Underdrive Brake Control Solenoid Valve
4. Overdrive Clutch Control Solenoid Valve
5. ON/OFF Solenoid Valve
6. Torque Converter Control Solenoid Valve (Damper Clutch Control Solenoid Valve)
7. Line Pressure Control Solenoid Valve
8. Support Bracket (Direct Control Solenoid Valve)
9. Support Bracket (Indirect Control Solenoid Valve)
10. Roller

    26 Brake Control Solenoid Valve (26/B_VFS). Description and operation

    Description • 26 brake control solenoid valve(26/B_VFS) is attached to the valve body. • This variable force solenoid valve directly controls the hydraulic pressure inside the 26Brake...

    26 Brake Control Solenoid Valve (26/B_VFS). Specifications

    Specifications ▷ Control type : Normally low type Shape Items Specifications Control current [mA] 0 - 1100 Supply pressure [kpa (kgf/cm², psi)] 1569...
