Hyundai Santa Fe: Light bulbs / Interior light replacement

Hyundai Santa Fe (TM) 2019-2025 Owner's Manual / Maintenance / Light bulbs / Interior light replacement

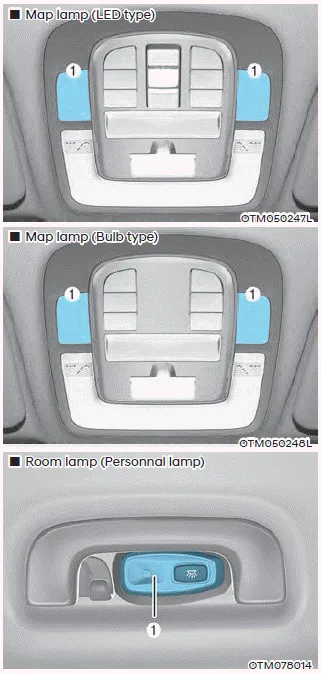

Map lamp (LED/Bulb type), Room lamp (LED type)

If the map lamp (LED/Bulb) (1) and the room lamp (LED type) (1) do not operate, we recommend that the system be checked by an authorized HYUNDAI dealer.

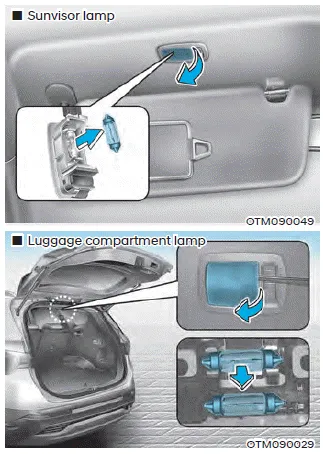

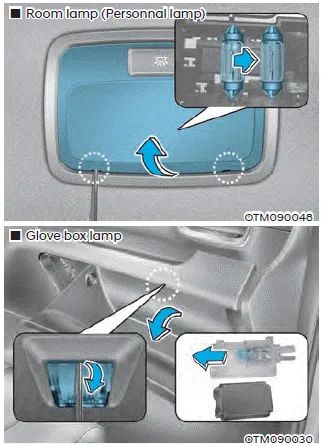

Room lamp, Sunvisor lamp, Glove box lamp and Luggage compartment lamp (Bulb type)

1. Using a flat-head screwdriver, gently pry the lens from the interior light housing.

2. Remove the bulb by pulling it straight out.

3. Install a new bulb into the socket.

4. Align the lens tabs with the interior light housing notches and snap the lens into place.

NOTICE

Be careful not to damage the cover, tab, and plastic housing.
