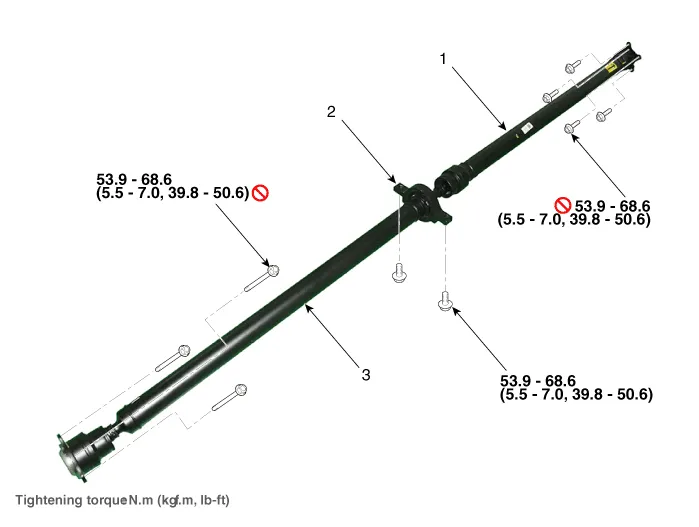

| Components |

| 1. Front propeller
shaft 2. Center bearing bracket |
3. Rear propeller
shaft |
| Removal |
|
| 1. |

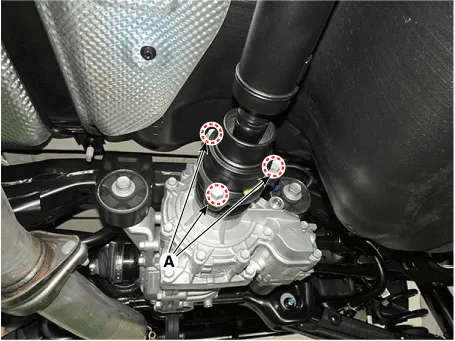

After making a match mark on the flange yoke and transaxle companion,
remove the propeller shaft mounting bolts (A).
|
| 2. |
Remove the bracket (A) after loosening the mounting bolts.
|
| 3. |
Loosen the center bearing bracket mounting bolts (A).
|
| 4. |
After making a match mark on the constant velocity joint and rear differential
companion, remove the propeller shaft mounting bolts (A).
|
| Installation |
| 1. |
To install, reverse the removal procedures.
|
